High-Elasticity Polymer Series
HC-R3 High-Elasticity Court Tile
HC-R3 Standard: an elastomer-body alternative to padded polypropylene for comparing surface feel during volleyball practice.
- Size
- 306 × 306 mm
- Thickness
- 13 mm
Volleyball Courts
Consider repeated jumping, floor contact, net supports and the free zone around the court.
From Serves to Landings
Dedicated volleyball courts and shared school sports areas, with contrasting lines that keep the playing space clear. Padded and elastomer tile options offer different constructions for recreational games and team practice.
Surface feel for practice
Jumping, lateral steps and floor contact make surface feel an important part of volleyball selection. Compare padded and elastomer samples with the footwear used by your players.
Net posts and free space
Map post sockets, padding, tensioning equipment and storage. Keep adjacent activity and movable equipment out of the free zone while the court is in use.
Indoor and outdoor use
Indoor halls prioritize entrances, floor height and net fixings. Outdoor recreation areas also need drainage, expansion space and weather-appropriate installation details.
FIVB playing area reference
Dimensions below are length × width unless stated otherwise. Playing lines and the total usable footprint are different measurements.
- Playing court
- 18 × 9 m
Length × width for court volleyball.
- General free zone
- At least 3 m on all sides
Gives a 24 × 15 m playing area by calculation; general free height is at least 7 m.
- FIVB World / Official Competitions
- 5 m sides; 6.5 m ends
Larger free zones apply, with at least 12.5 m of free height.
Adding volleyball to a basketball court? Use a contrasting line color and plan storage for the removable net so the space can switch between activities.
Official Planning References
- FIVB Official Volleyball Rules 2025–2028 (opens in a new tab)Rules 1.1–1.3: Playing area and surface (PDF)
For competition projects, include the organizer’s court specification with your inquiry.
Flooring Options
For school and recreational volleyball, compare the elastomer feel of HC-R3 with the padded constructions of TANK-600 and MAX-X1. Choose a sample set around your floor height, layout and practice needs.
Rubber-Cushioned Series
TANK-600 Cushioned Sports Tile
TANK-600 With Pad: a padded polypropylene–rubber construction to consider for repeated volleyball practice. Its deeper build-up needs suitable perimeter transitions.
- Size
- 304.8 × 304.8 mm
- Thickness
- 23 mm–26.4 mm
- Options
- 2 configurations
MAX Series
MAX-X1 340 mm Court Tile
MAX-X1 With Pad: a padded option for volleyball or a basketball-led shared court. Choose With Pad explicitly; the same model is also sold Without Pad.
- Size
- 340 × 340 mm
- Thickness
- 17 mm–18.5 mm
- Options
- 2 configurations
Details for Your Quotation
Start with the sport, size and destination. Add the details below if you have them.
Request a Quote- Recreational, school or specified competition use
- Floor-contact expectations and performance documentation
- Playing area, free zone and clear overhead height
- Net-post details, base condition and indoor/outdoor setting

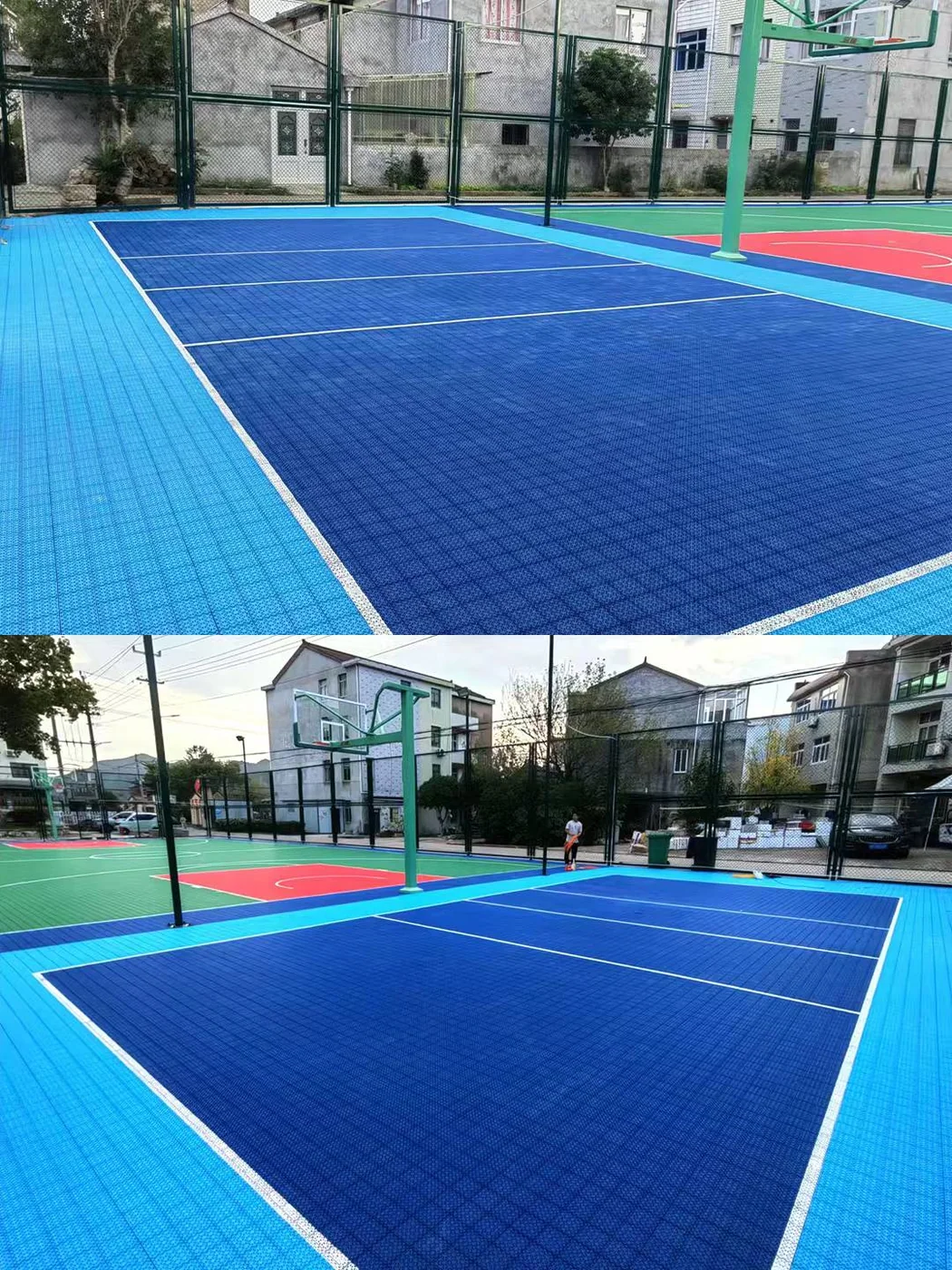

Layout and Color Inspiration
Installation photograph courtesy of our flooring supplier.
